The United States is officially sending Ukraine its long-serve Patriot air defense system to help defend the embattled nation’s civilian infrastructure against the ongoing Russian assault. This decision represents what could be a significant leap in Ukraine’s defensive capabilities, while also serving as a powerful political message about America’s deepening support for the wartorn nation.
However, America’s Patriot air defense system, like the air defense enterprise itself, is a widely misunderstood topic online. So we set out to offer a better understanding of the system itself, its capabilities, and perhaps most importantly, its limitations.
It’s a near certainty that Russia will leverage misconceptions about both the system and its role to advanced narratives meant to undermine faith in American equipment and in Ukraine’s chances at emerging from this conflict victorious.
So, in order to innoculate yourself against the flood of disinfomation that’s sure to ensue, here’s a crash course in America’s MIM-104 Patriot Air Defense system.
Related: A Patriot missile battery from the US could create new headaches for Russia in Ukraine
What is the Patriot air defense system?
The MIM-104 Patriot system is comprised of multiple assets but serves a singular purpose: identifying and intercepting inbound threats ranging from aircraft to both cruise and ballistic missiles.
Developed by Raytheon, the MIM-104 Patriot Air Defense System first entered service in the early 1980s as a replacement for both Nike Hercules high-to-medium air defense and MIM023 Hawk medium tactical air defense systems.
Despite being developed with a focus on defending against high-performance aircraft, there was a clear need for countering tactical missiles by the mid-80s. In this context, tactical missiles refer to short-range ballistic missiles, cruise missiles, and air-to-surface missiles deployed by air and rotorcraft.

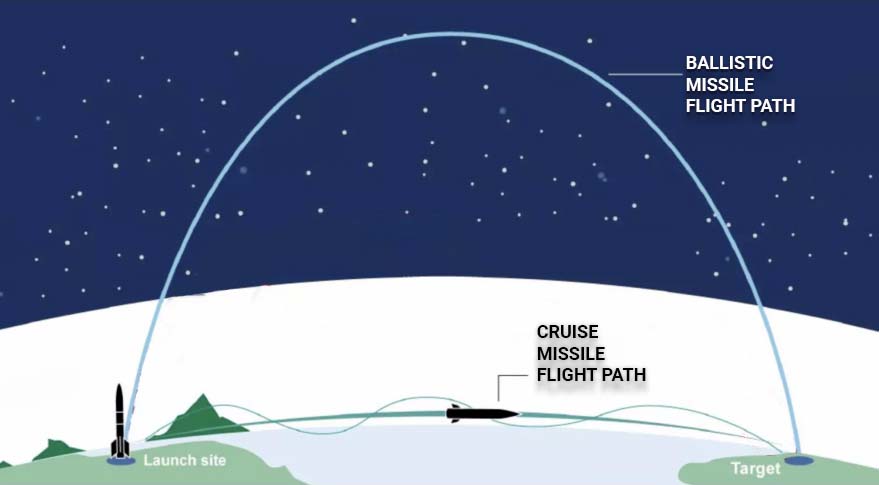

Ballistic and cruise missiles offer different challenges for air defenses due to their inherent differences in their operation. Ballistic missiles like Russia’s air-launched Kh47M2 Kinzhal or even its nuclear-armed RS-28 Sarmat ICBM could be thought of as similar to rockets. They’re commonly launched using a conventional rocket booster along a high, arcing ballistic flight path before separating from the booster and careening back toward their target at extremely high rates of speed. Nearly all ballistic missiles achieve hypersonic velocities as they approach their targets, but unlike modern hypersonic missiles, they rarely maneuver during their descent, making their trajectories fairly predictable.
Cruise missiles, on the other hand, can be thought of as more akin to suicide drones. They’re often powered by air-breathing jet engines, not unlike tactical aircraft, which allow them to fly under power along a more horizontal and unpredictable trajectory. These weapons fly at much lower speeds than ballistic missiles but can be more dangerous due to their maneuverability and the ability to use to curvature of the earth to mask their approach.
To this end, the U.S. soon fielded two modifications to the Patriot system before it ever even saw combat. The first, Patriot Advanced Capability 1 (or PAC-1), was a software upgrade while the second, PAC-2, included changes to the hardware itself, including a new fuse and larger fragments within the warhead. By the time the first Patriot systems were deployed in the Middle East for the Gulf War in 1991, both of these modifications had been fielded, which made the Patriot system more adept at engaging missiles than it had been at its onset.
However, the Patriot system failed to live up to expectations during its first combat deployment, and as a result, it is often dismissed by those who only recall those early controversies. However, mistaking today’s MIM-104 Patriot system for the same one America fielded over three decades ago would be a mistake.
“In the first Gulf War Patriot was right around 25%. It was doing something it wasn’t necessarily designed for. It was actually built for planes but they decided to throw it at missiles and it sometimes hit. Since then, we have vastly improved the system — like hundreds of upgrades,” explained U.S. Army Patriot Fire Control Enhanced Operator-Maintainer, Sergeant First Class Long.
“Now days, Patriot has right around a 95% hit ratio.”Long publishes both humorous and educational content about the U.S. military on YouTube and TikTok that’s well worth checking out.
We’ll dive much further into the controversy surrounding the Patriot’s early performance in an another piece.

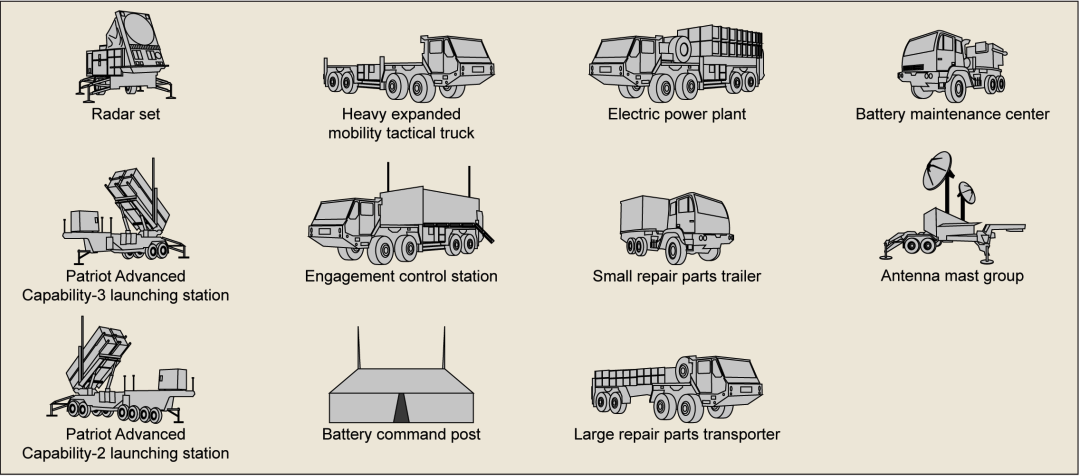

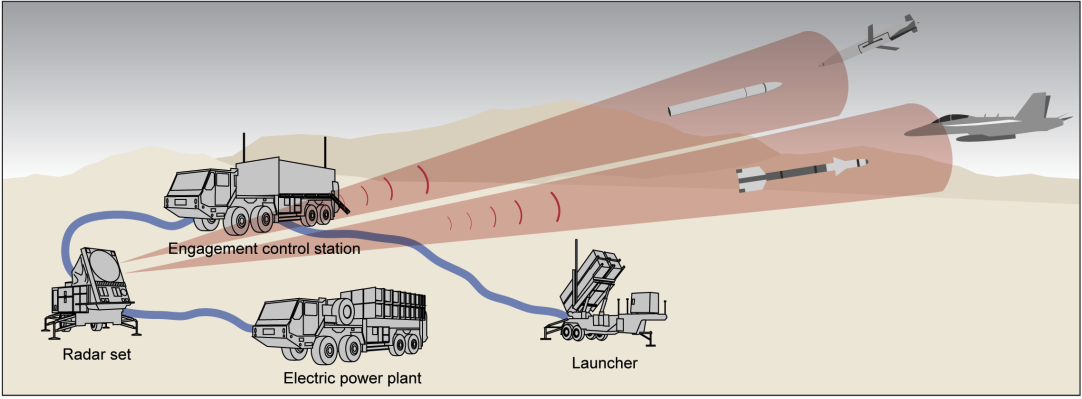

The Patriot system is usually deployed in batteries that are made up of six primary components as well as some others depending on circumstance:
- An electrical power plant
- A radar set
- An engagement control station
- Launching stations
- An antenna mast group
- The Patriot interceptor missiles themselves
Today, the Patriot is operated by 18 nations, with the United States operating the largest fleet of systems, with 16 Patriot battalions operating upwards of 50 Patriot batteries with more than 1,200 interceptors in the field.
However, it’s important to understand that the Patriot system does not operate as an island unto itself under normal circumstances. In America’s missile defense apparatus, the Patriot serves as one portion of a layered defense strategy, something Long and the Army refer to as “defense in depth.”
“Defense in depth is defined as having increasing levels of firepower as the threat gets closer to you,” Long explains, “which means the enemy runs into an increasing number of fires as they approach friendly forces.”
Related: The S-400 myth: Why Russia’s air defense prowess is exaggerated
What can Patriot missiles (PAC-2 and PAC-3 Interceptors) really do?
Today’s American Patriot systems operate interceptors from two primary families: PAC-2 and PAC-3, though even the PAC-2 missiles are a far cry from their siblings employed in the 1990s.
Incredibly, both PAC-2 and PAC-3 interceptors are actually launched by the Patriot system before it has even secured what’s known as a “weapons-grade lock,” or a targeting solution for the inbound aircraft or missile. Instead, the weapon is deployed in what’s called the “initial fly out” stage of its guidance approach where it is then fed active guidance information from the Patriot’s radar array until it gets close enough to the target to transition from the Patriot’s radar system to its own onboard guidance systems.
This results in an extremely short window of time between an aircraft, for instance, being notified of a radar lock and the weapon itself actually reaching its target.
“The Patriot is by far the most lethal SAM system in the world, and there is no aeroplane in existence that is going to get away from it. The missile itself is also designed to bias its impact on the nose of the aircraft so as to kill the pilot. If a Patriot is fired at your aircraft, you might as well eject, as there is nothing you can do to get away from it,” explained Navy Lt. Cdr. Rod Candiloro, an F/A-18 Hornet pilot who flew during Operation Iraqi Freedom.
His concerns about the system were warranted. At the time, the system was proving very effective at intercepting enemy missiles with its processes automated, but that automation ultimately led to two friendly-fire incidents against a Royal Air Force Tornado and a U.S. Navy Hornet. All three crewmembers involved in those intercepts were killed.
PAC-2 missiles are interceptors that benefit from the PAC-1 and 2 updates discussed above, however, the modern PAC-2 GEM-T, or Guidance Enhanced Missile – Tactical (as opposed to GEM-C with the “C” denoting cruise missile), is a modernized iteration with a number of further enhancements to improve its performance against tactical ballistic missiles.
These interceptors come equipped with a new proximity fuse for their explosive fragmentation warheads, which represents one of the significant operational differences between these weapons and the kinetic-based PAC-3 interceptors.
“As the interceptor missile approaches the target, its active seeker will steer the missile to the target. A PAC-2 Patriot missile will detonate in the vicinity of the threat missile whereas a PAC-3 will seek to impact the warhead of the threat ballistic missile.”“Patriot Deployment Fact Sheet,” NATO, May of 2015
The PAC-2 GEM-T is also equipped with a new low-noise oscillator in the nose that allows for improved targeting of aircraft or missiles with a low radar cross-section. These interceptors entered service in 2002 and saw significant success in Iraq the following year.
“In contrast with the experience of Desert Storm, Patriot interceptors defeated every ballistic missile they engaged during the 2003 Operation Iraqi Freedom. Since 2015, Patriot has successfully engaged scores of missiles and drones in the Yemen Missile War. Israel has likewise used it on a number of occasions to defeat drones, aircraft, and other threats.”“Patriot to Ukraine: What Does It Mean?” by Mark Cancian and Tom Karako for the Center for Stratgic & International Studies, Dec. 16, 2022
PAC-3 MSE and CRI
While the PAC-2 missiles used blast fragmentation warheads to take out incoming missiles or aircraft, the smaller and more modern PAC-3 missiles leverage “hit to kill” technology to destroy targets with sheer kinetic force. Another important difference is manufacturer — while PAC-2 missiles come from Raytheon, PAC-3 interceptors come from Lockheed Martin. As such, the PAC-3 missiles are completely new “clean sheet” designs meant to maximize the Patriot air defense system’s capability set.
PAC-3 missiles use an active Ka-band radar seeker for terminal guidance into the target, with 180 solid-fueled attitude control motors (ACM) in its forward section to allow for heightened maneuverability.
Despite the leap in performance, PAC-3 missiles are much smaller than PAC-2 interceptors, reducing their overall range despite the interceptor’s improved aerobatics allowing them to defend a larger overall area. The PAC-3 MSE, or Missile Segment Enhanced, is slightly larger and offers different capabilities than the PAC-3 CRI, which stands for Cost Reduction Initiative.
Related: China’s new hypersonic weapon is a lot like America’s 1960s space bomber
How much heat can each Patriot battery carry?

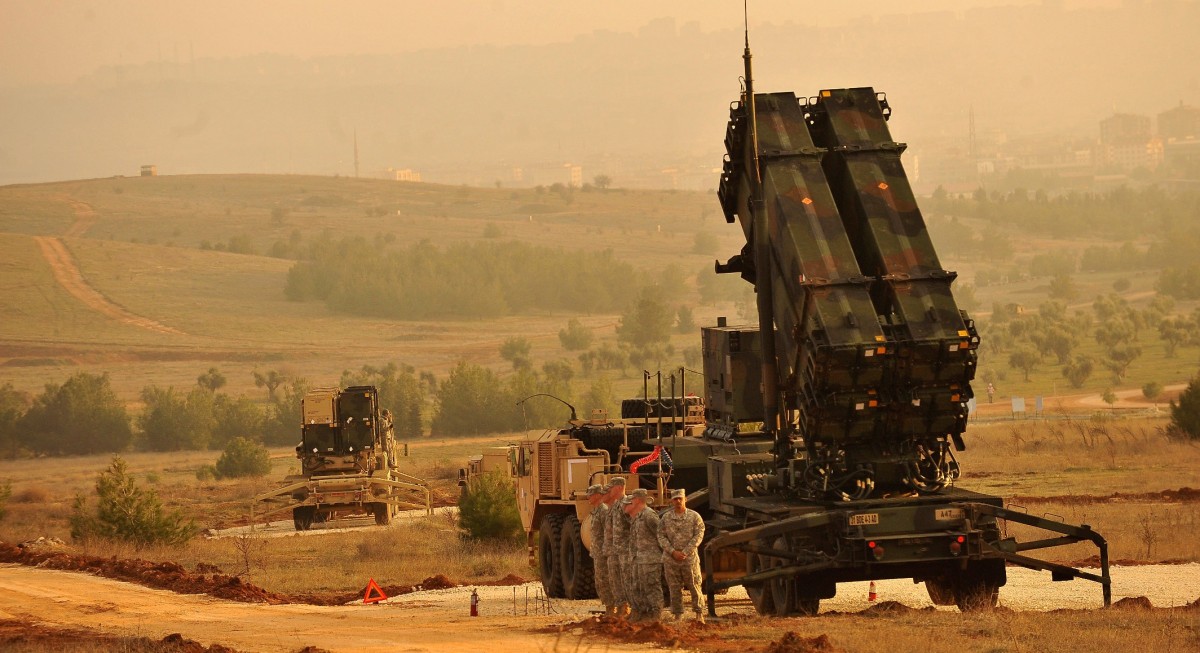

A single Patriot battery can include up to eight separate M901 launch stations. A launch station carries up to four launch canisters on a two-axle trailer. These canisters can each hold one PAC-2 GEM-T interceptor, three PAC-3 enhanced missiles, or as many as four PAC-3 CRI (cost reduction initiative) missiles. America’s Patriot systems tend to deploy with an assortment of these interceptors to offer the best option for whatever the incoming threat may be.
By compiling information about the interceptors leveraged by America’s current Patriot air defense system from the New York Times and the Center for Strategic International Studies Missile Defense Project, we’ve been able to ascertain the following:
|Missile||# Per |
|Cruise Missile |
|Ballistic Missile |
|PAC-2 GEM-T||1||99 miles||99 miles||Undisclosed|
|PAC-3 MSE||3||75 miles||75 miles||44 miles|
|PAC-3 CRI||4||40 miles||40 miles||22 miles|
Related: America’s enemies can track stealth fighters on radar (and it isn’t a problem)
What about the Patriot’s radar system?
Patriot batteries have operated a number of different radar systems over the years, known as the AN/MPQ-53, AN/MPQ-65, and AN/MPQ-65A radars. Unlike the Nebo-M system leveraged by Russia’s S-300 and S-400 systems, the Patriot radar actually combines surveillance, tracking, and engagement functions into one assembly mounted on a single trailer — dramatically reducing deployment time and increasing mobility while offering the same function and performance of multiple arrays.
The AN/MPQ-53 system operates at the C-band frequency range for long-range detection (low-frequency) and at the G/H bands for precision targeting at distances claimed to be as great as 100 kilometers (62 miles), while the more modern AN/MPQ-65 systems offer a disclosed range of better than 150 kilometers (or about 93 miles).
However, the older MPQ-53 system has been reported to actually offer a range of up to 170 kilometers (105 miles), suggesting the newer MPQ-65 can actually reach significantly further than had been acknowledged.
The more advanced MPQ-65 system is said to be capable of tracking up to 100 airborne targets simultaneously while guiding nine separate missiles toward their targets.
Despite their high degree of capability, these arrays do have limitations, however. One notable limitation is its inability to offer full 360-degree scanned coverage.
Today, the Army is working on rolling out another, even newer, radar array for the Patriot, dubbed the Lower Tier Air and Missile Defense System (LTAMDS), part of Raytheon’s GhostEye family of radars. It promises offer full 360-degree coverage. Despite being about the same size as previous Patriot radar systems, Raytheon claims it offers twice the power.
Which radar system the Patriot battery provided to Ukraine will operate has not been disclosed thus far.
Related: How effective is Russia’s Nebo-M counter-stealth radar?
How effective is the Patriot air defense system?
As is so often the case when discussing advanced military systems, trying to assess the Patriot’s real efficacy is a simple question with a complicated answer. Historically speaking, the Patriot system has seen a dramatic improvement since its rocky start in the Gulf War, achieving what SFC Long says is around a 95% intercept success rate.
But Long himself will tell you that there’s much more to the story when it comes to air defenses than simply comparing intercept ratios between very different systems like America’s Terminal High Altitude Area Defense (THAAD), Israel’s Iron Dome, or Russia’s S-400. Each of these systems was designed for specific (and often different) portions of the air defense enterprise. But further than that, they also see very different rates of use.
“Right now, on paper, THAAD has a 100% engagement efficiency. It has had one engagement and hit one missile,” he explains.
And while the Patriot system currently has around a 95% success rate, it still only engages a few times a year. The more frequently the system is called on to defend against incoming threats, the more chances it has to fail and the lower its overall success rate may be. Iron Dom, Long points out, may have a success rate of just 80-85%, but it sometimes sees use multiple times per week, giving it that many more opportunities to fail.
On paper, the MIM-104 Patriot air defense system is among the most advanced and capable missile defense assets on the face of the planet, and there’s a sound argument to be made that it’s even more advanced and capable than Russia’s much-touted S-400… but the complicated reality of the air defense enterprise is that it’s extremely complex, and nothing is invincible.
